CYLINDRICAL ROLLER BEARINGS
         Dimensions (mm)                 Bearing Numbers Weight
  (kg)
d D

B

 r
 r1

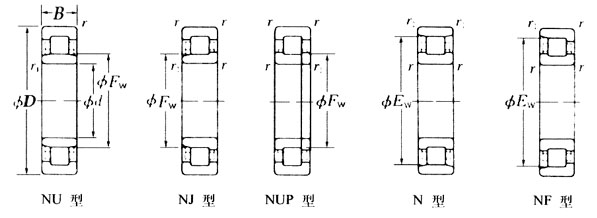

 FW EW NU型 NJ型 NUP型 N型 NF型
20 47 14 1 0.6 27 40 NU204 NJ204 NUP204 N204 NF204 0.108
47 14 1 0.6 26.5 - NU204E NJ204E NUP204E - - 0.112
47 18 1 0.6 27 - NU2204 NJ2204 NUP2204 - - 0.146
47 18 1 0.6 26.5 - NU2204E NJ2204E NUP2204E - - 0.146
52 15 1.1 0.6 28.5 44.5 NU304 NJ304 NUP304 N304 NF304 0.147
52 15 1.1 0.6 27.5 - NU304E NJ304E NUP304E - - 0.153
52 21 1.1 0.6 28.5 - NU2304 NJ2304 NUP2304 - - 0.212
52 21 1.1 0.6 27.5 - NU2304E NJ2304E NUP2304E - - 0.215
25 47 12 0.6 0.3 30.5 - NU1005 - NUP1005 - - 0.084
52 15 1 0.6 32 45 NU205 NJ205 NUP205 N205 NF205 0.132
52 15 1 0.6 31.5 - NU205E NJ205E NUP205E - - 0.138
52 18 1 0.6 32 - NU2205 NJ2205 NUP2205 - - 0.163
52 18 1 0.6 31.5 - NU2205E NJ2205E NUP2205E - - 0.166
62 17 1.1 1.1 35 53 NU305 NJ305 NUP305 N305 NF305 0.241
62 17 1.1 1.1 34 - NU305E NJ305E NUP305E - - 0.243
62 24 1.1 1.1 35 - NU2305 NJ2305 NUP2305 - - 0.340
62 24 1.1 1.1 34 - NU2305E NJ2305E NUP2305E - - 0.350
30 55 13 1 0.6 36.5 - NU1006 - NUP1006 - - 0.121
62 16 1 0.6 38.5 53.5 NU206 NJ206 NUP206 N206 NF206 0.200
62 16 1 0.6 37.5 - NU206E NJ206E NUP206E - - 0.209
62 20 1 0.6 38.5 - NU2206 NJ2206 NUP2206 - - 0.262
62 20 1 0.6 37.5 - NU2206E NJ2206E NUP2206E - - 0.262
62 23.8 1 1 38.5 - NU3206 - - - - 0.343
