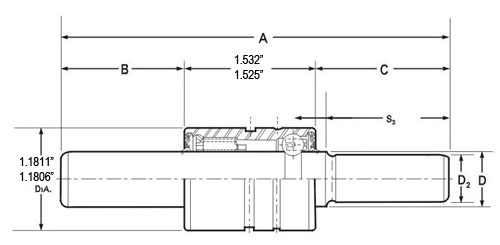

PEAK NO NSK NO FAG NO A  B C D D2 S2
WIR163091   WN2358-1S 3.59 0.53 1.53 0.6267 0.4739 1.44
WIR163092   WN2364-7S 3.64 0.59 1.52 0.6267 0.4739 1.43
WIR163096   WN2375-4S 3.76 0.56 1.67 0.6267 0.4739 1.59
WIR163099   WN2388-2S 3.89 0.73 1.63 0.6267 0.4739 1.55
WIR1630101 665331 WN2397-S 3.98 0.98 1.46 0.6267 0.4739 1.36
WIR1630103 　 WN2405-S 4.06 0.65 1.88 0.6267 0.4739 1.79
WIR1630105 　 WN2413-2S 4.13 1.21 1.39 0.6267 0.4739 1.26
WIR1630106 　 WN2419-S 4.19 0.87 1.80 0.6267 0.4739 1.72
